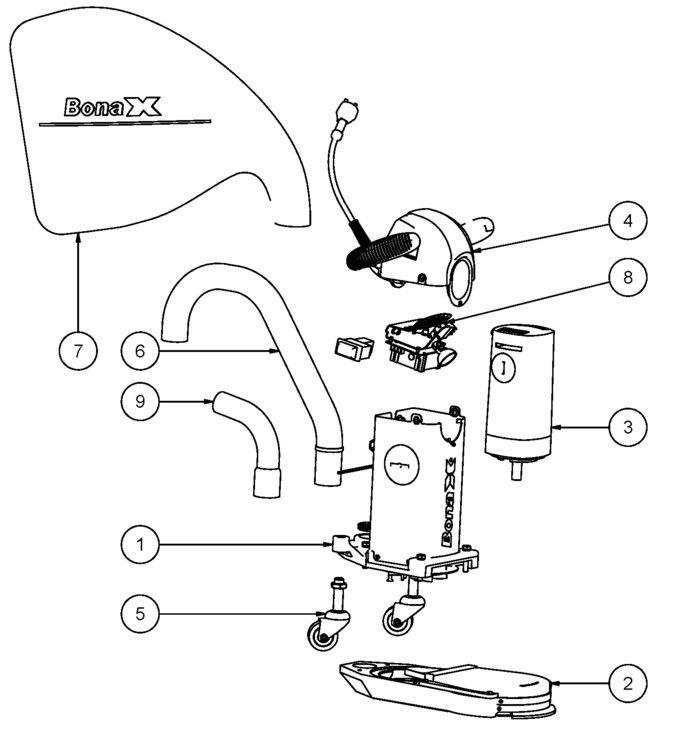

Edge XL 115v USA

Exploded Views

• Edge Accessories
• Complete spareparts in exploded view

1. Edge Housing
2. Edge sanding arm std.
3. Edge motor 115 V
4. Edge machine cap
5. Wheel polyurethane incl. Screw
6. Dust tube
7. EDGER BAG W/ZIPPER
8. Edge 115 V el. components

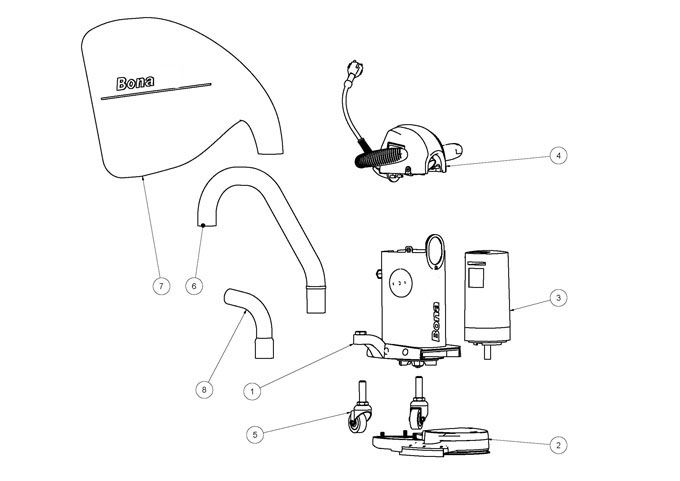

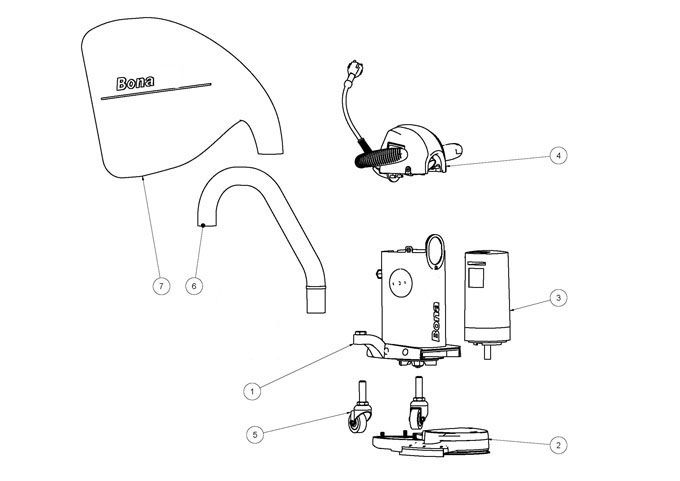

Edge std. 115v USA

Exploded Views

• Edge Accessories
• Complete spareparts in exploded view

1. Edge Housing
2. Edge Sanding Arm
3. Edge Motor 115 V
4. Edge Machine Cap

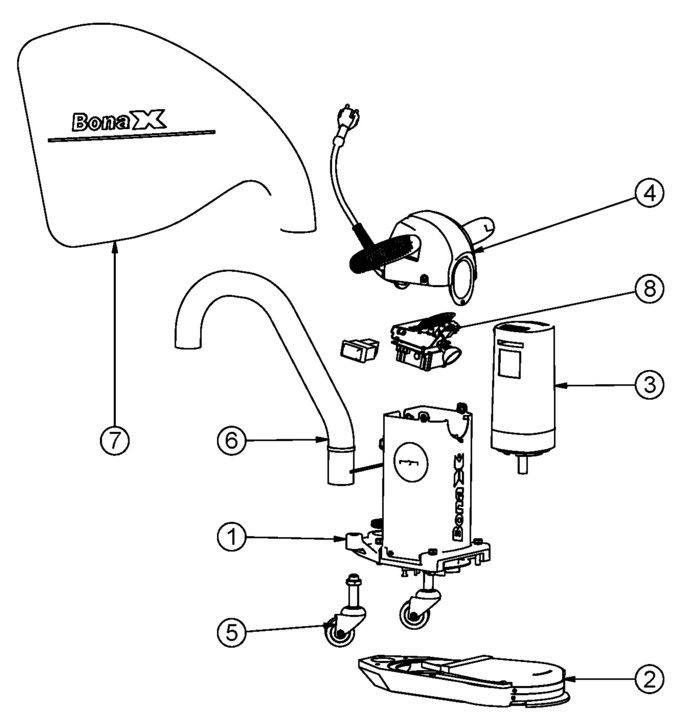

230V, 50Hz, 220mm arm

Exploded Views

AMO230009.3 - BONA EDGE 220 230V-50-60Hz 07-2022.pdf

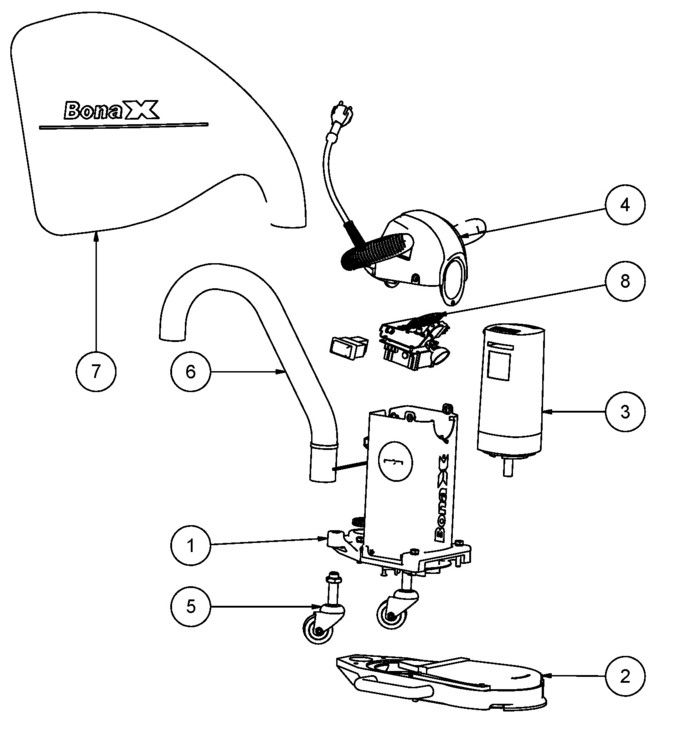

230V, 50Hz, 330mm arm

Exploded Views

• Edge Accessories
• Complete spareparts in exploded view

1. Edge Housing
2. Edge Sanding Arm Long
3. Edge Motor 230V
4. Edge Machine ap.
5. Wheel comp. With axl
6. Dust tube
7. Dust bag
8. Edge el. Components

230V, 50Hz, 130mm arm

Exploded Views

AMO230018.3 - BONA EDGE 130 230V-50Hz_EN
